SRM.MAX

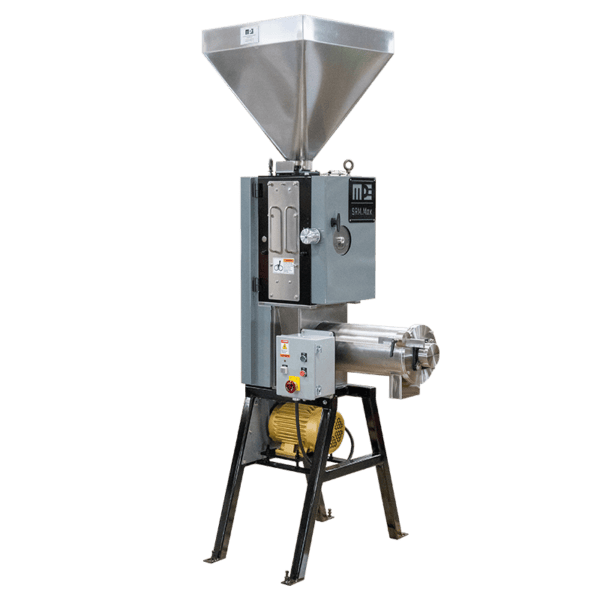

MODEL SRM.MAX ROLLER-STYLE COFFEE GRINDER
Application
Filter (500 – 1,000 μm): Up to 400 lb/hr (180 kg/hr)
Espresso (250 um – 500 μm): Up to 200 lb/hr (90 kg/hr)
Capacity
175 – 400 lb/hr [80-180 kg/hr],
espresso to coarse respectively
Sections
2Product Description
Producing up to 400 pounds per hour* of ground coffee with an extremely uniform particle size and utilizing the same technology as large “industrial” coffee grinders, the SRM.MAX produces ground coffee superior in quality compared to coffee processed on disc or plate grinders. This results in a cool, uniform grind for optimal brew performance.
Features
- Precision cuts (corrugations) on the two pairs of hardened rollers gently reduce the coffee to the exact grind. This results in a cool, uniform and precise grind.
- Adjustable densification/dechaffing chamber regulator arm allows the full control of coffee density and the elimination of unwanted “chaff.”
- Safety switches automatically disconnect motor starter when cover doors are opened
- Hopper slide gate provides the capability for both the shutoff and control of the coffee bean supply.
2 Stage Granulizer Design
The SRM.MAX has two pairs of granulizer rolls which can achieve the same narrow particle size distributions as larger granulizers. The first pair is a coarse corrugation and the second pair is a finer corrugation, both which shear the particles and not crack them.
